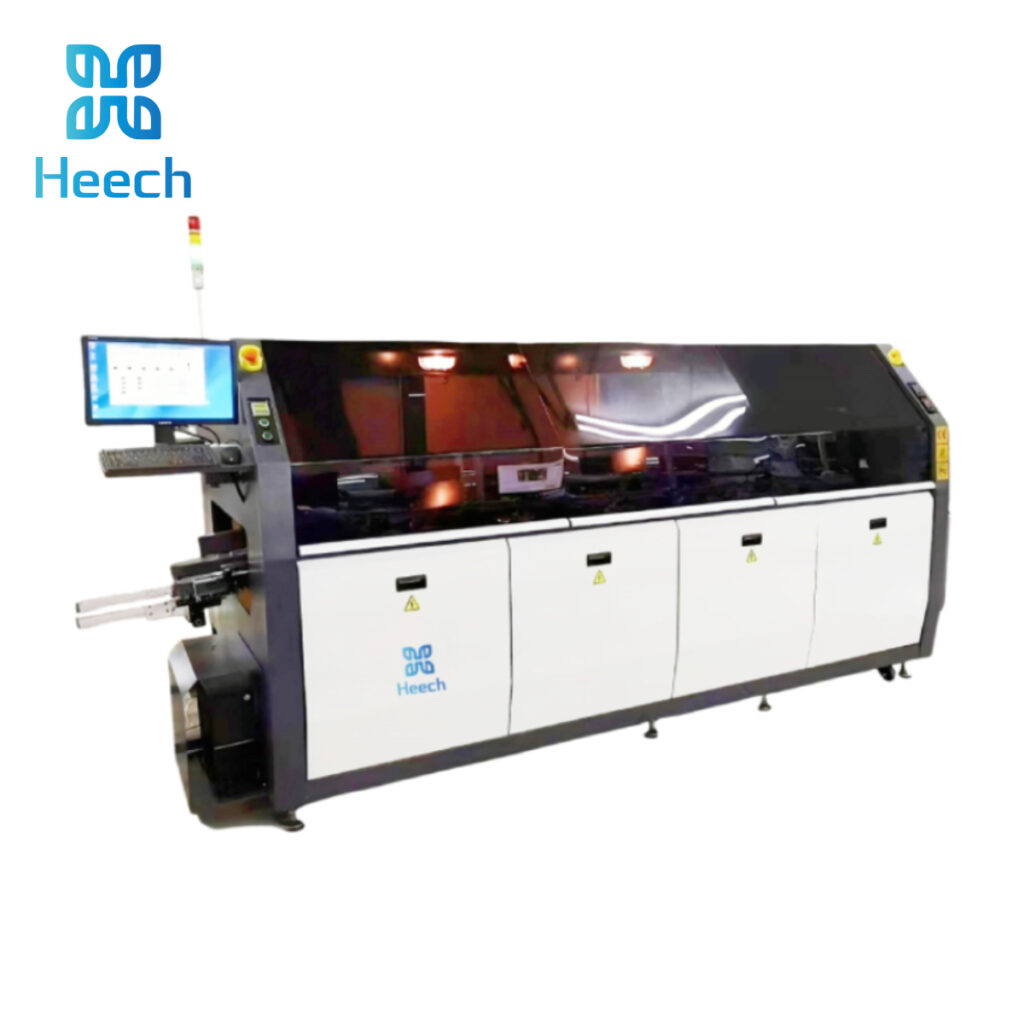

Automatic Dual-Wave Wave Soldering Machine HC-WS350
■ 3 Preheating Zones (3 Hot Air)
■ Precision Dual-Wave Control
■ Intelligent Control System Siemens PLC+PC
The HC-WS350 is a medium to large wave soldering machine with a 350mm working width, designed for continuous mass production. It offers superior thermal uniformity, powerful preheating, and advanced wave control for complex THT assemblies.
Precision Dual-Wave Control: Stepless frequency conversion technology, enabling independent and accurate wave height adjustment.
SPECIFICATIONS
| Model | HC-WS350 | ||
| Machine Dimension | 4200*1350*1700MM | Machine Weight | 2100KGS |
| Power Supply | 3P5W, 380V/220V 50Hz 63A | Starting Power | 25 KW |
| Control System | Siemens PLC + PC | Normal Operating Power | 8 KW |
| Spray System | |||
| Transmission method | Stepper Motor | Flux Flow | 10-100mm/min |
| Spray Pressure | 0.25-0.4MPA | Auto Fill Flux | Automatic |
| Exhaust Ducting Diameter | Ø200MM | Exhaust Capacity | 25M³/Min |
| Exhaust Method | Up & Down Exhaust | ||
| Preheating System | |||
| Preheating Mode | Hot Air (Optional: IR Tube) | Preheating Length | 1600MM |
| Control Mode | PID Close Loop Control + SSR Driving | Preheating Zones Number | 3 |
| Preheating Temp. | Room Temperature-250℃ | Warm-up Time | Approx.15min (Setting 150℃) |
| Conveyor System | |||
| PCB Width (L X W) (MM) | Min: 80×60, Max: 400x350mm | Conveyor Speed Control Mode | Speed Regulator |
| Conveyor Direction | L → R (Optional R→ L) | Finger | Quick-change Finger (Standard) |
| Conveyor Speed Range | 0~2000MM/Min | Conveyor Width Control | Manual |
| Conveyor Height | 750±20MM | Conveyor Angle | 4°-7° |
| Component Height | Top 120MM (Optional: 160MM) Bottom 15MM | ||
| Soldering System | |||
| Solder Pot Material | Full Titanium | Heater Power | 380VAC 6KW |
| Wave Height Adjust | Motorized, 0-17mm, Inverter Controlled | Solder Pot Max Temperature | 300℃ |
| Solder Pot Capacity | 250-350 KGS | Wave Drive Power | 2 × 1/2 HP, 3P, 220 VAC |
| Temperature Control Mode | PID+SSR | Solder Wave Type | Dual Wave |
| Solder-pot Warm-up Time | Approx.180min (Setting 250℃) | Solder Pump Type | Motor Drive |
| Colling System | |||
| Colling Method | Forced Air | ||
| Other | |||
| Finger Cleaning System | Brush | ||
