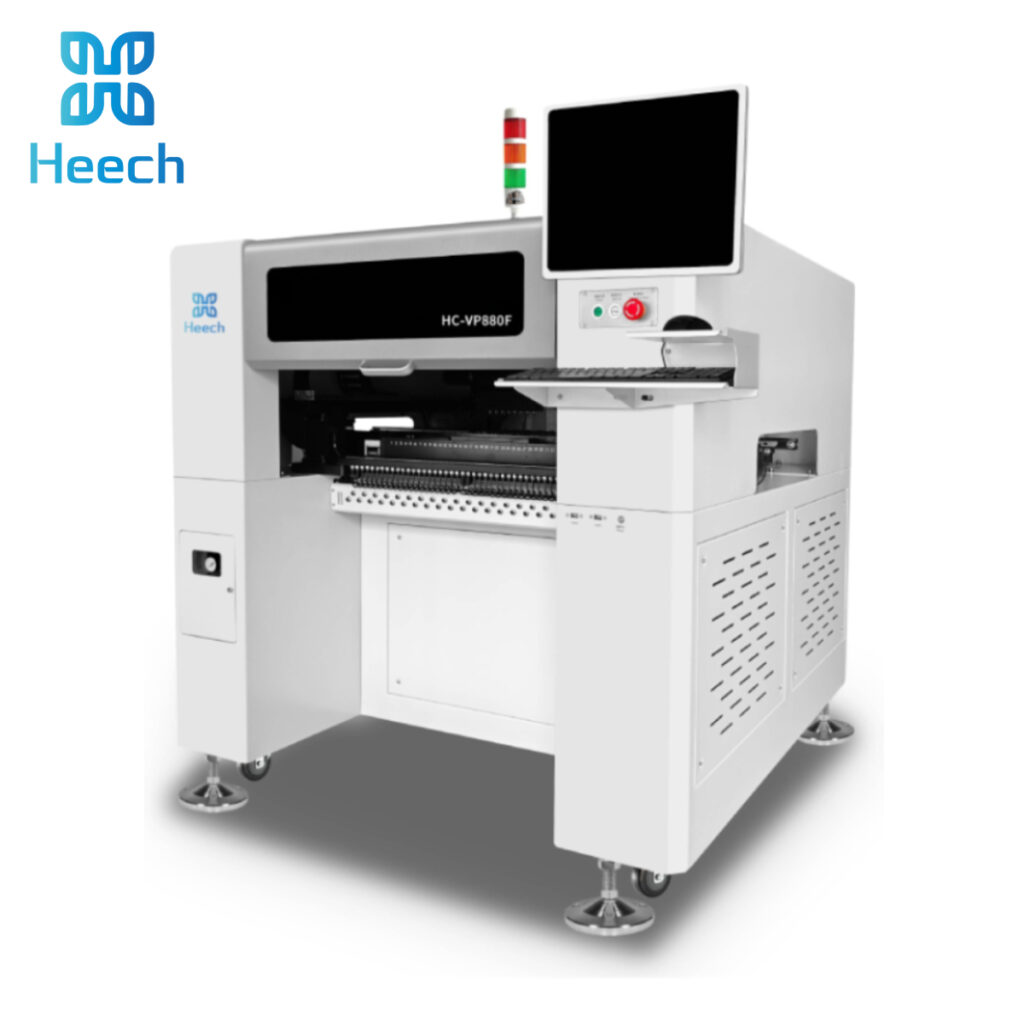

Automatic PnP SMD Machine HC-VP880F
■ 8 Heads
■ Placement speed up to 12000CPH
■ Placement Accuracy ±0.01 mm
The 8-Head Pick and Place Machine HC-VP880F is designed for medium to high-volume SMT production lines, it ideal for EMS factories, OEM/ODM manufacturers, and multi-variety batch orders.
Maximum Throughput Design: All 8 placement heads identify and pick components at the same time, paired with a large 80-slot feeder capacity (for 8mm feeders) to support high-speed, continuous production with minimal downtime.
SPECIFICATIONS
| Model | HC-VP872F / VP880F | Quantity of Feeders | 72 / 80 (Take 8mm Feeder) |
| Power Supply | AC 220V 50/60Hz 1000W | Range of Mounting Speed | 10000–12000PCS/H |
| Max. PCB Size |
(872F) 470×300MM with tray 470×420MM without tray (880F) 470×220MM with tray 470×350MM without tray |
Feeder Type | Electric Feeder, Pneumatic Feeder, Vibration Feeder, IC Tray, YAMAHA CL Series |
| Quantity of IC Trays | 3 Plates (286 bits) | IC Tray Size | 460×350MM |
| Positioning Accuracy | 0.01MM | Repeat Accuracy | 0.05MM |
| Mounting Accuracy | 0.05MM | Compressed Air | 0.5–0.7MPA |
| Mounting Heads | 8 | Nozzle Type | JUKI ORUI is applicable |
| Z Axis Max. Movement Range | 20MM | Buffering Range of Suction Nozzle | 4.5MM |
| Max. Height of Applicable Components | ≤7MM | Range of Angle for Components | ±180° |
| XY Maximum Stroke | 645×680MM | Indicator | 17-inch industrial control display |
| Tracks of XY Axis | Linear Guide Rail + Ball Screw / Grinding (Optional) | Identify Equipment |
Mark Camera ×1 High-speed Recognition Camera ×8 High-precision Camera ×1 |
| PCB Transmission Mode | Default left-to-right, supports dual-side connection, three-step board | Identification Mode | 8 heads identify and take materials simultaneously |
| Drive Motor | High-speed DSP drive, AC servo motor | Mark Point Identification | Manual / Fully automatic positioning |
| Compatible File Format | CSV / TXT formats can be imported directly | Programming Method | Import coordinate file, one-key programming, optimal path planning |
| Machine Weight | 500KGS | Machine Dimension | 1375×1420×1400MM |
|
Applicable Mounting Range: 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, 30×30MM, pin spacing >0.3MM GFP, BGA, etc. Visual customization of special-shaped components supported. |
|||
