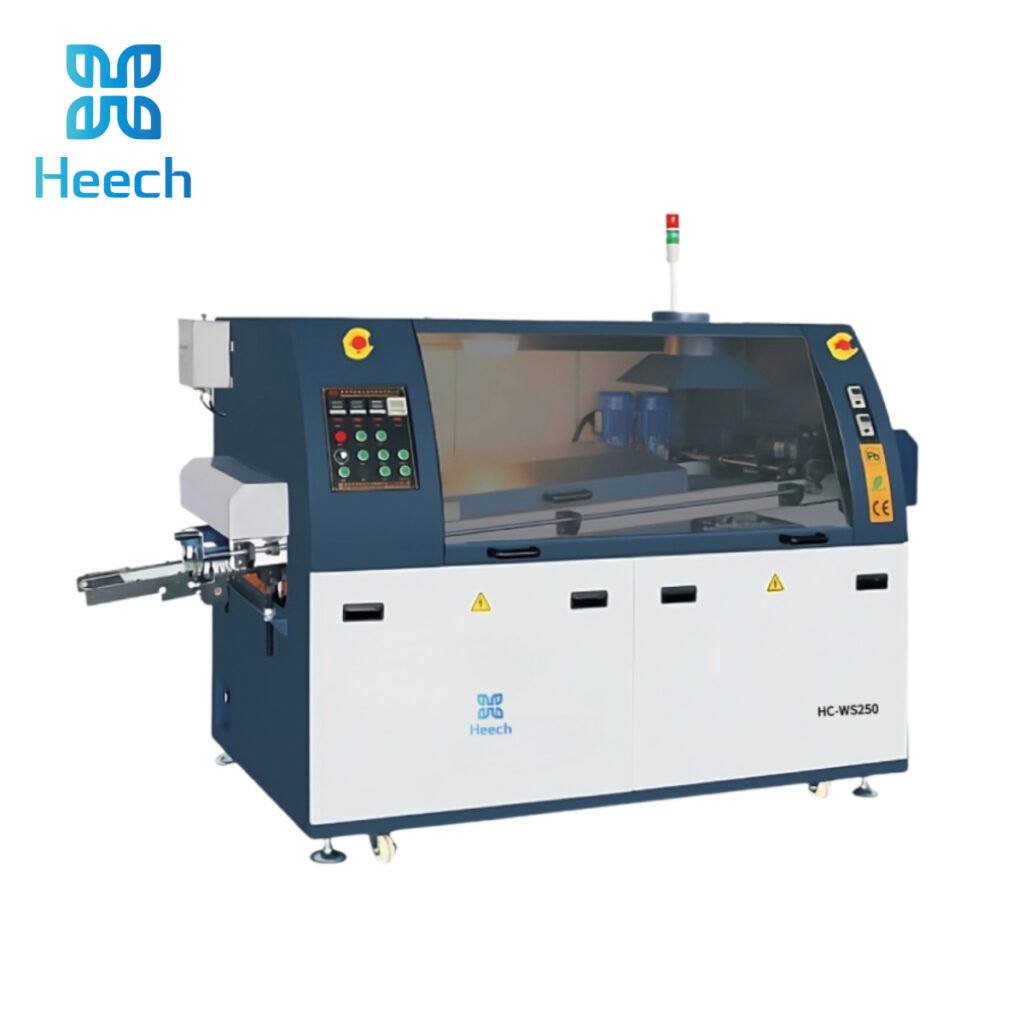

Compact Lead-Free Wave Soldering Machine HC-WS250
■ 2 Preheating Zones ( Infrared)
■ Optimized for Lead-Free Soldering
■ Intelligent Control System Siemens PLC
This Wave Soldering Machine is engineered for small-batch through-hole production. Its compact design, stable solder wave, and precise preheating control make it ideal for small PCBs, development boards, LED modules, and low-volume THT production.
SPECIFICATIONS
| Model | HC-WS250 | ||
| Machine Dimension | 2500*1200*1650MM | Machine Weight | 1000KGS |
| Control System | Instrument Panel + Siemens PLC | Starting Power | 15.5 KW |
| Power Supply | 5-Wire 3-Phase 380V/220V 50Hz 63A | Normal Operating Power | 6 KW |
| Spray System | |||
| Transmission method | Air Cylinder Motor | Flux Flow | 10-100mm/min |
| Spray Pressure | 0.25-0.4MPA | Auto Fill Flux | Automatic |
| Exhaust Ducting Diameter | Ø200MM | Exhaust Capacity | 25M³/Min |
| Exhaust Method | Up & Down Exhaust | ||
| Preheating System | |||
| Heating Method | Infrared (Optional: Hot Air) | Preheating Zones | 2 |
| Control Mode | PID + SSR | Preheating Length | 600MM |
| Preheating Temp. | Room Temperature-300℃ | Warm-up Time | Approx.15min (Setting 150℃) |
| Conveyor System | |||
| PCB Width (L X W) (MM) | Min: 80×60, Max: 300x250mm | Conveyor Direction | L → R (Optional R → L) |
| Conveyor Speed Control Mode | Speed Regulator | Finger | Quick-change Finger (Standard) |
| Conveyor Speed Range | 0~2000MM/Min | Conveyor Width Control | Manual |
| Conveyor Height | 750±20MM | Conveyor Angle | 4°-7° |
| Component Height | Top 120MM (Optional: 160MM) Bottom 15MM | ||
| Soldering System | |||
| Solder Pot Material | Full Titanium | Heater Power | 380VAC 8KW |
| Wave Height Adjust | Motorized, 0-15mm, Inverter Controlled | Solder Pot Max Temperature | 300℃ |
| Solder Pot Capacity | Lead-free 200-300 KGS | Wave Drive Power | 2KW 220V |
| Temperature Control Mode | PID+SSR | Solder Wave Type | Single-Wave |
| Number of Solder Pots | 1 | Solder Pump Type | Motor Drive |
| Colling System | |||
| Colling Method | Forced Air | ||
| Other | |||
| Finger Cleaning System | Brush | ||
