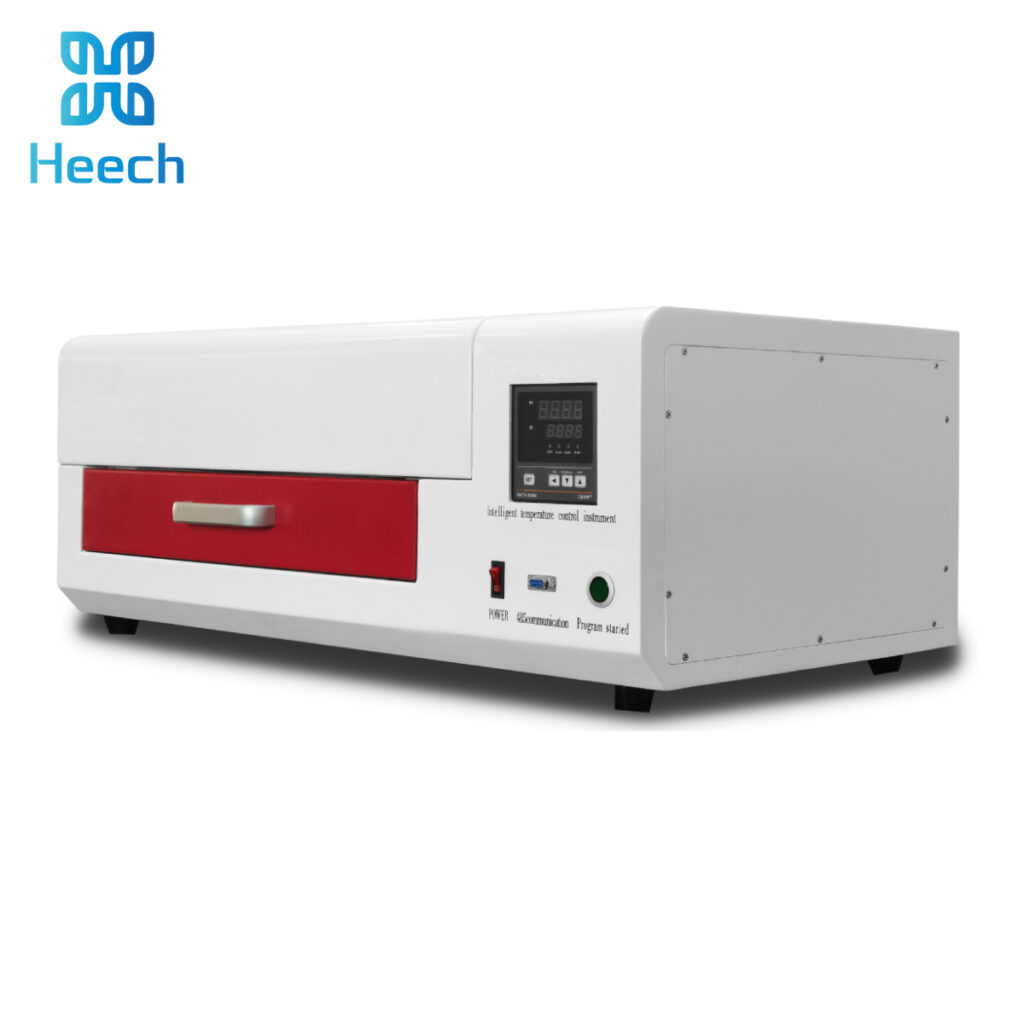

Desktop Reflow Oven HC-RF3036
■ Compact Drawer Design
■ Stable & Precise Heating
■ Ideal for Prototypes & Small Batches
This Desktop Reflow Oven HC-RF3036 is designed for precise and stable soldering of PCBs in small SMT production lines.
Ideal for Low-Volume & Prototyping Lines: Perfect for small EMS factories, R&D labs, and educational training facilities that require high soldering quality without industrial-scale equipment costs.
SPECIFICATIONS
| Model | HC-RF3036 | Mode of Transport | Drawer Type |
| Power Supply | AC220V 50/60Hz | Start Power | 3.8 KW |
| Allowable Height of Element | 35MM | Operating Power | 2 KW |
| Working Area | 360x300MM | Accessible Height | 40±5MM |
| Effective Welding Area | 350x250MM | Temp Drop Slope | 1～3℃/sec |
| PCB Tray | High temperature resistant transparent tray | Heating Method | Ceramic radiant panel, rapid heating, energy saving |
| Control Mode | Operation panel key, microcomputer intelligent instrument PID closed-loop control | Communication Mode | RS485 |
| Number of Temperature Control Stage | 1 to 16 segments, can be selected according to actual needs | Uniform Temperature | ±5℃ |
| Temp Curve | 1 ~ 4 temperature curves can be set, each curve is controlled by 16 sections | Diameter of External Air Outlet | 95mm, suitable for general 100mm PVC exhaust pipe or aluminum foil pipe |
| Cooling Mode | Built-in Turbocharged suction cooling | Furnace Liner Material | 8K mirror stainless steel |
| Cooling Air Duct | Turbine type independent exhaust duct, standard equipped with external diameter 100mm exhaust interface | Temperature Range | Short-time high temperature Max350℃, high temperature resistance, suitable for high temperature solder welding |
| Machine Weight | 45KGS | Machine Dimension | 817x504x322MM |
