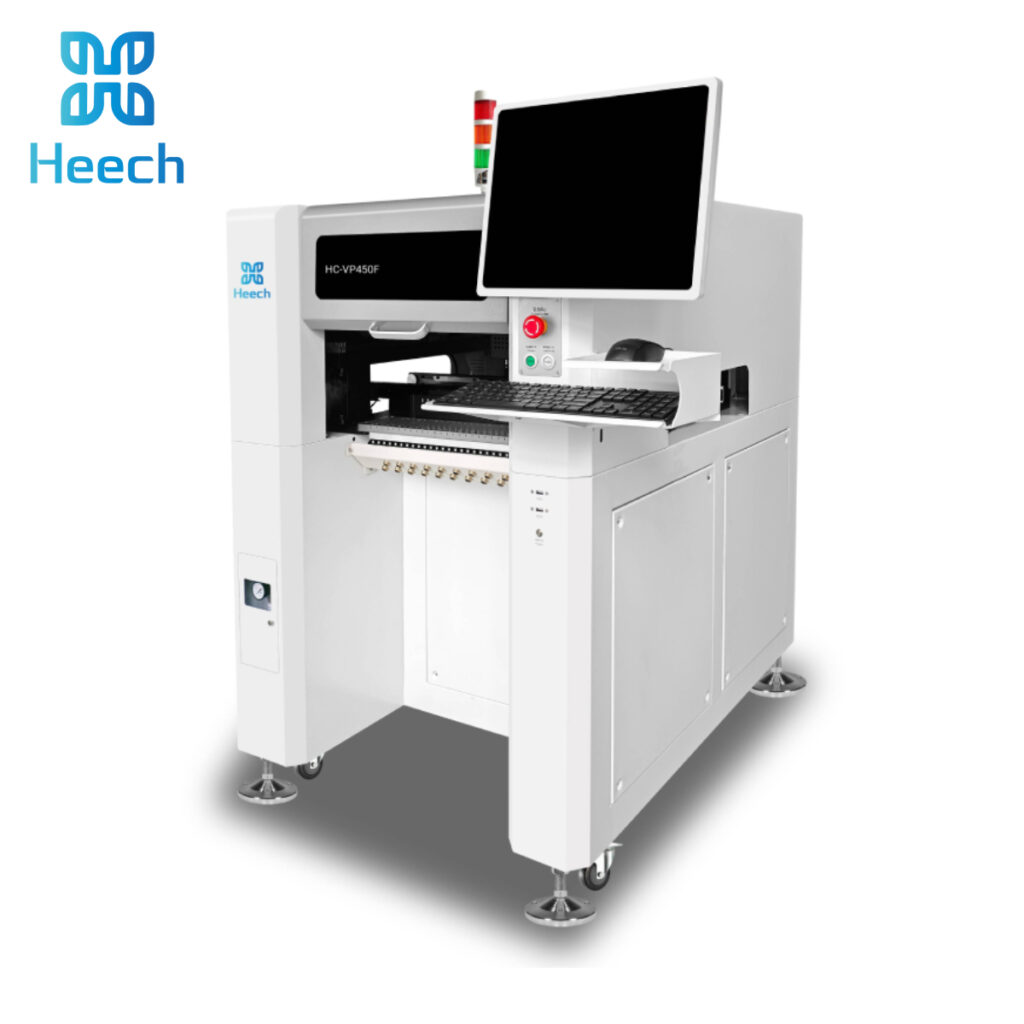

Full-automatic Pick and Place Machine HC-VP450F
■ 4 Heads
■ Placement speed up to 8000CPH
■ Placement Accuracy ±0.01 mm
The desktop pick and place machine HC-DP450F designed for small-scale SMT production. It ideal for labs, startups, EMS prototyping lines, and diversified low-volume orders.
Intelligent Vision: Mark Camera + 4 High-Speed Recognition Cameras + High-Precision IC Camera. Supports 0201–1206, SOT / SOP / QFN / BGA, LED beads, and ICs up to 30×30mm with ≥0.3mm pitch.
SPECIFICATIONS
| Model | HC-VP444F / VP450F | Quantity of Feeders | 44bit / 50bit (subject to 8mm Feeder) |
| Power Supply | AC 220V 50/60Hz 600W | Range of Mounting Speed | 5000–8000PCS/H |
| Max. PCB Size |
(444F) 350×200MM with tray 350×260MM without tray (450F) 350×130MM with tray 350×190MM without tray |
Feeder Type | Electric Feeder, Pneumatic Feeder, Vibration Feeder, IC Tray, YAMAHA CL Series |
| Quantity of IC Trays | 1 Plate (48 bits) | IC Tray Size | 320×150MM |
| Positioning Accuracy | 0.01MM | Repeat Accuracy | 0.05MM |
| Mounting Accuracy | 0.05MM | Compressed Air | 0.5–0.7MPA |
| Mounting Heads | 4 | Nozzle Type | JUKI ORUI is applicable |
| Z Axis Max. Movement Range | 20MM | Buffering Range of Suction Nozzle | 4.5MM |
| Max. Height of Applicable Components | ≤7MM | Range of Angle for Components | ±180° |
| XY Maximum Stroke | 440×570MM | Indicator | 17-inch industrial control display |
| Tracks of XY Axis | Linear Guide Rail + Ball Screw / Grinding (Optional) | Identify Equipment |
Mark Camera ×1 High-speed Recognition Camera ×4 High-precision Camera ×1 |
| PCB Transmission Mode | Left-to-right transmission, supports dual-side connection, single-section board | Identification Mode | 4 heads identify and pick simultaneously |
| Drive Motor | High-speed DSP drive, AC servo motor | Mark Point Identification | Manual / Automatic positioning |
| Compatible File Format | CSV / TXT formats can be imported directly | Programming Method | Import coordinate file, one-key programming, optimal path planning |
| Machine Weight | 280KGS | Machine Dimension | 900×1145×1280MM |
|
Applicable Mounting Range: 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, 30×30mm, pin spacing ＞0.3mm GFP, BGA, etc. Visual customization of special-shaped components supported. |
|||
