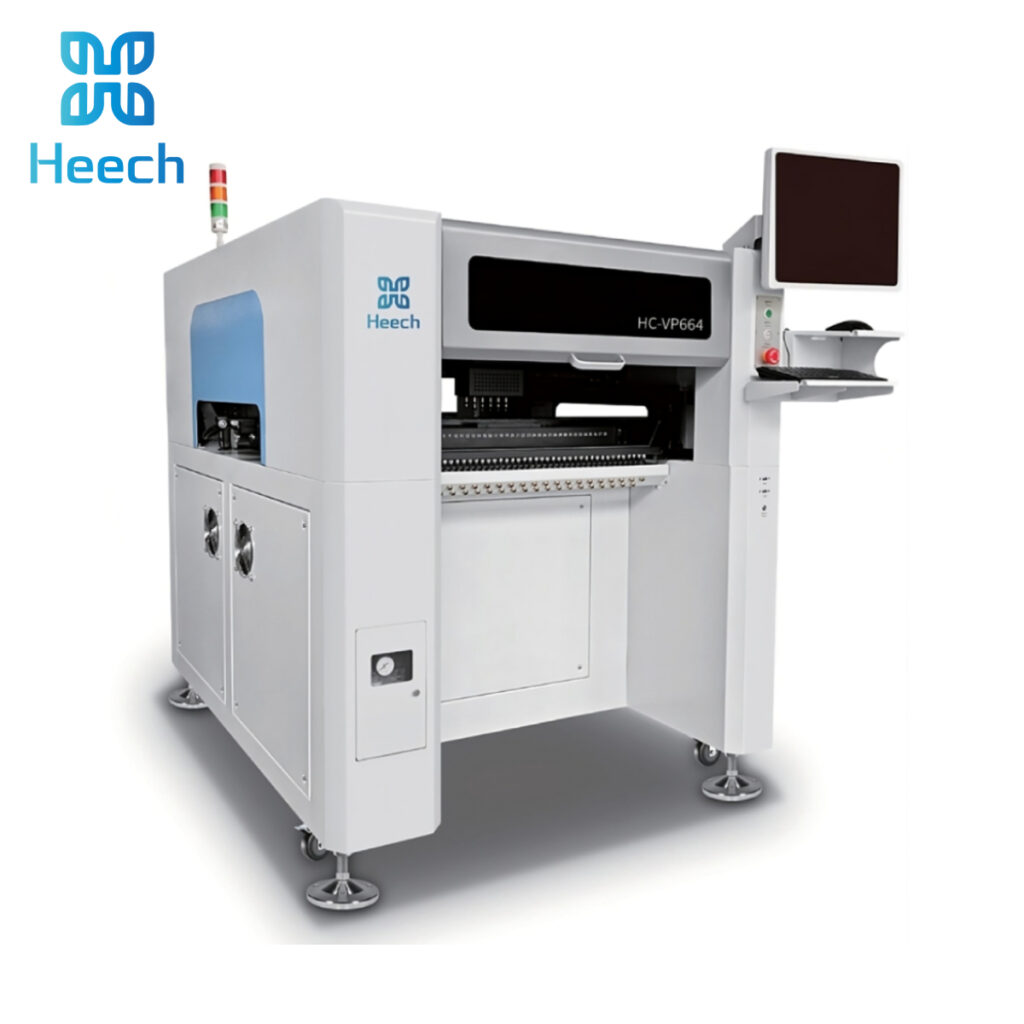

Full Automatic Pick and Place Machine HC-VP664F
■ 6 Heads
■ Placement speed up to 10000CPH
■ Placement Accuracy ±0.01 mm
The 6-Head Pick and Place Machine HC-VP664F is designed for small to medium SMT production lines, it ideal for EMS factories, OEM/ODM manufacturers, and multi-variety batch orders.
Intelligent Vision: Mark Camera + 6 High-Speed Recognition Cameras + High-Precision IC Camera. Supports 0201–1206, SOT / SOP / QFN / BGA, LED beads, and ICs up to 30×30mm with ≥0.3mm pitch.
SPECIFICATIONS
| Model | HC-VP664F | Quantity of Feeders | 64-bit (Take 8mm Feeder) |
| Power Supply | AC 220V 50/60Hz 800W | Range of Mounting Speed | 9000–10000PCS/H |
| Max. PCB Size |
500×360MM without tray 500×240MM with tray |
Feeder Type | Electric Feeder, Pneumatic Feeder, Vibration Feeder, IC Tray, YAMAHA CL Series |
| Quantity of IC Trays | 4 Plates (384 bits) | IC Tray Size | 650×330MM |
| Positioning Accuracy | 0.01MM | Repeat Accuracy | 0.05MM |
| Mounting Accuracy | 0.05MM | Compressed Air | 0.5–0.7MPA |
| Mounting Heads | 6 | Nozzle Type | JUKI ORUI is applicable |
| Z Axis Max. Movement Range | 20MM | Buffering Range of Suction Nozzle | 4.5MM |
| Max. Height of Applicable Components | ≤7MM | Range of Angle for Components | ±180° |
| XY Maximum Stroke | 630×680MM | Indicator | 17-inch industrial control display |
| Tracks of XY Axis | Linear Guide Rail + Ball Screw / Grinding (Optional) | Identify Equipment |
Mark Camera ×1 High-speed Recognition Camera ×6 High-precision Camera ×1 |
| PCB Transmission Mode | Left-to-right default, supports dual-side connection, three-step board | Identification Mode | 6 heads identify and take materials simultaneously |
| Drive Motor | High-speed DSP drive, AC servo motor | Mark Point Identification | Manual / Fully automatic positioning |
| Compatible File Format | CSV / TXT formats can be imported directly | Programming Method | Import coordinate file, one-key programming, optimal path planning |
| Machine Weight | 438KGS | Machine Dimension | 1310×1360×1450MM |
|
Applicable Mounting Range: 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, 30×30MM, pin spacing ＞0.3MM GFP, BGA, etc. Visual customization of special-shaped components supported. |
|||
