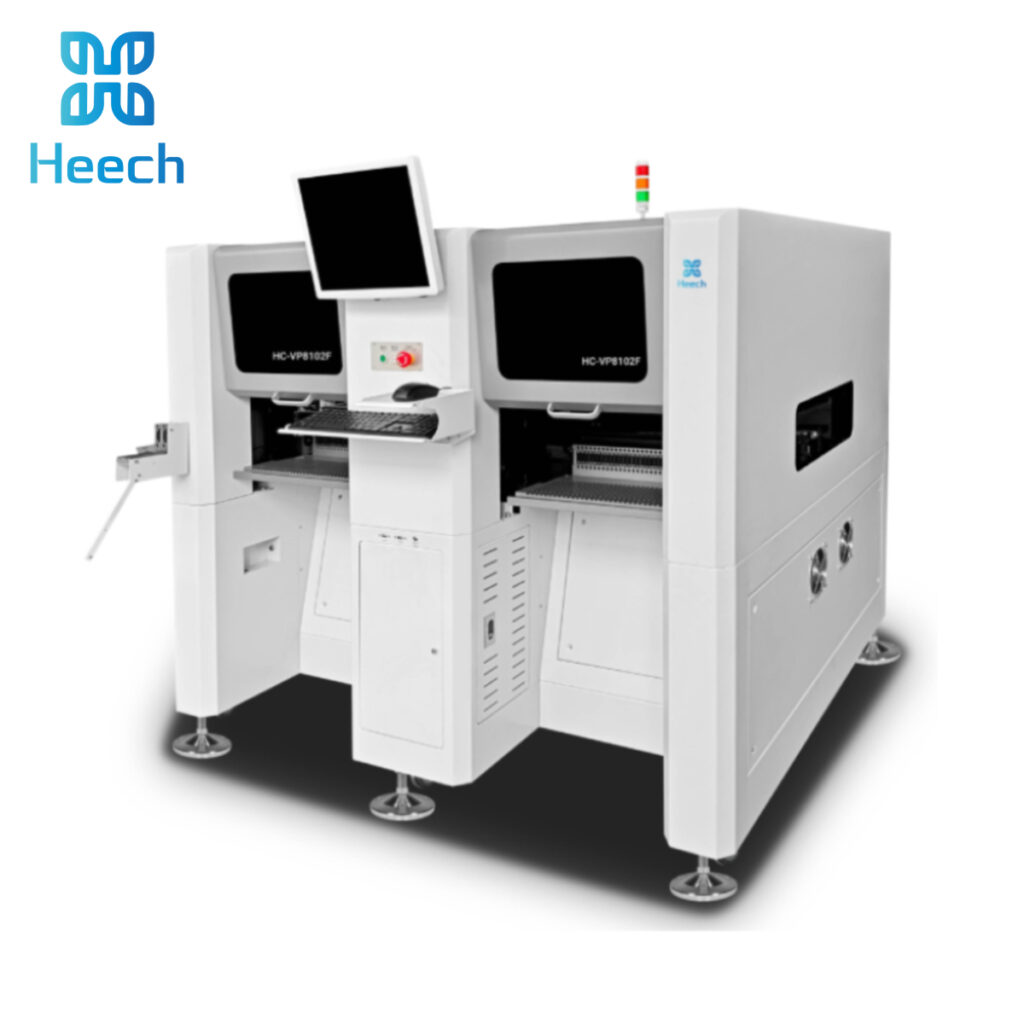

Full Automatic SMD Mounter HC-VP8102F
■ 8 Heads
■ Placement speed up to 24000CPH
■ Placement Accuracy ±0.01 mm
The 8-Head Pick and Place Machine HC-VP8102F is designed for high-volume SMT production lines, it ideal for EMS factories, OEM/ODM manufacturers, and multi-variety batch orders.
Maximum Throughput Design: All 8 placement heads identify and pick components at the same time, paired with a large 102-slot feeder capacity (for 8mm feeders) to support high-speed, continuous production with minimal downtime.
SPECIFICATIONS
| Model | HC-VP887F / VP8102F | Quantity of Feeders | 87 / 102 (Take 8mm Feeder) |
| Power Supply | AC 220V 50/60Hz 1500W | Range of Mounting Speed | 20000–24000PCS/H |
| Max. PCB Size |
350×125MM with tray 350×370MM without tray |
Feeder Type |
Electric Feeder, Pneumatic Feeder, Vibration Feeder, IC Tray, etc. The NXT feeder is applicable. |
| Quantity of IC Trays | 2 Plates (96 bits) | IC Tray Size | 330×280MM |
| Positioning Accuracy | 0.01MM | Repeat Accuracy | 0.05MM |
| Mounting Accuracy | 0.05MM | Compressed Air | 0.5–0.7MPA |
| Mounting Heads | 8 | Nozzle Type | JUKI ORUI is applicable |
| Z Axis Max. Movement Range | 50MM | Buffering Range of Suction Nozzle | 4.5MM |
| Max. Height of Applicable Components | ≤20MM | Range of Angle for Components | ±180° |
| XY Maximum Stroke | 420×740MM (one side) | Indicator | 17-inch industrial control display |
| Tracks of XY Axis | Linear Guide Rail + Ground Lead Screw | Identify Equipment |
Mark Camera ×1, High-speed Recognition Camera ×8, High-precision Camera ×1 |
| PCB Transmission Mode |
Default left-to-right board, supports dual-side connection, three-step board |
Identification Mode | 8 heads identify and take materials simultaneously |
| Drive Motor | High-speed DSP drive, AC servo motor | Mark Point Identification | Manual / Fully automatic positioning |
| Compatible File Format | CSV / TXT formats can be imported directly | Programming Method | Import coordinate file, one-key programming, optimal path planning |
| Machine Weight | 1200KGS | Machine Dimension | 1730×1350×1450MM |
|
Applicable Mounting Range: 0201, 0402, 0603, 0805, 1206, LED beads, diode, triode, SOT, 35×35MM, pin spacing >0.3MM GFP, BGA, etc. Visual customization of special-shaped components is supported. |
|||
