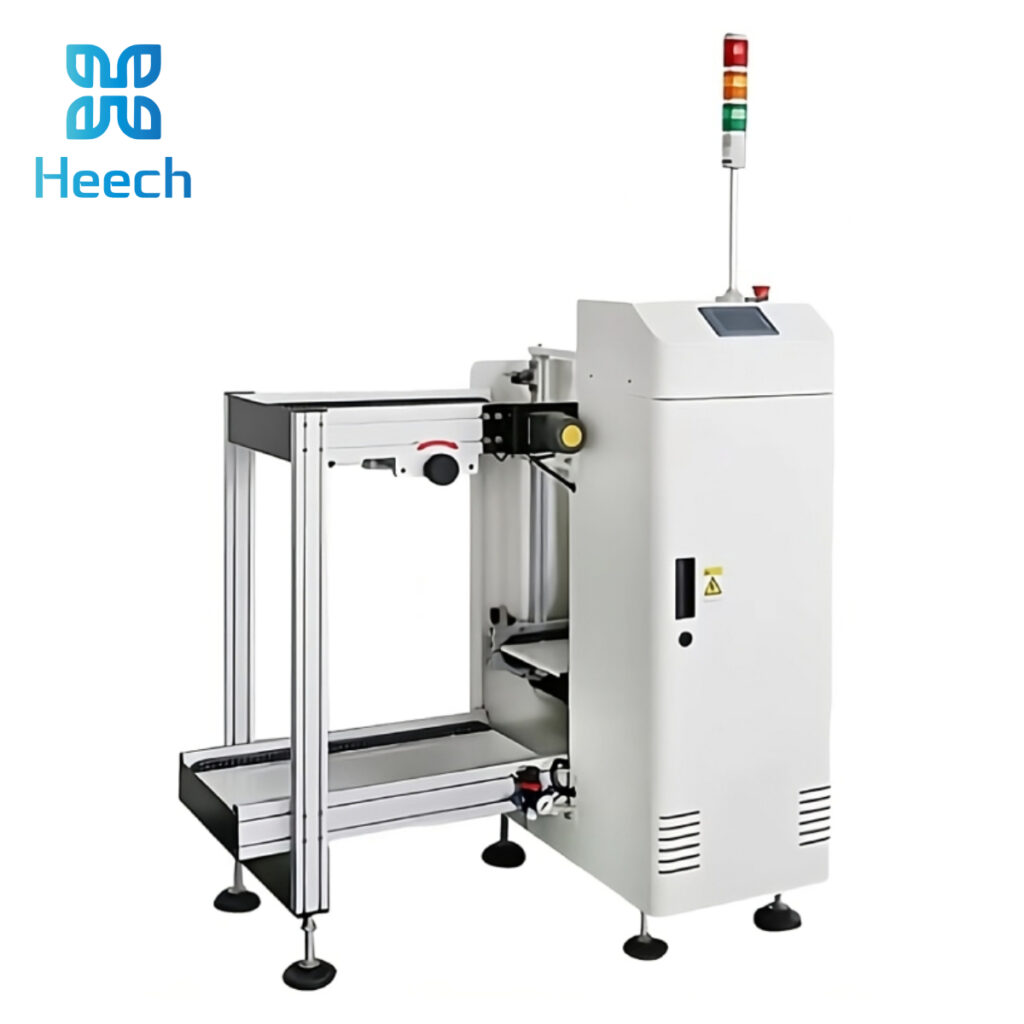

Full-automatic SMT PCB Loader HC-L250
■ Hands-free PCB handling
■ Seamless SMT line connection
■ Stable automatic transfer
The Automatic PCB Loader is designed for the front end of SMT production lines to efficiently load PCBs onto the conveyor system. It provides stable board separation, smooth feeding, and automated handling, greatly reducing manual labor and improving line productivity. Ideal for EMS factories, OEM/ODM manufacturers, and fully automated SMT/THT assembly lines.
Ideal for fully automated SMT lines, reducing labor cost and enhancing production efficiency.
SPECIFICATIONS
| Model | HC-L250 | HC-L330 | HC-L390 |
| Power Supply | AC220V 50HZ | ||
| Air Pressure | 0.4~0.6MPA | ||
| Lifting Step of Magazine | 10, 20, 30, 40, 50MM | ||
| PCB Thickness | 0.5~3MM | ||
| PCB Size | 50×50–330×250MM | 50×50–460×330MM | 50×50–530×390MM |
| Magazine Size | 355×320×565MM | 460×400×565MM | 535×460×565MM |
| Transmission Height | 900±20MM | ||
| PCB Transmission Direction | L → R (R → L Optional) | ||
| Control Mode | HMI + PLC | ||
| Communication Interface | SMEMA Signal | ||
| Push-rod Device | Cylinder Push Plate | ||
| Board Feeding Time | About 5S / PCS | ||
| Frame Change Time | About 25 Seconds | ||
| Machine Size | 1130×790×1300MM | 1320×870×1300MM | 1450×930×1300MM |
| Machine Weight | 160KGS | 180KGS | 200KGS |
