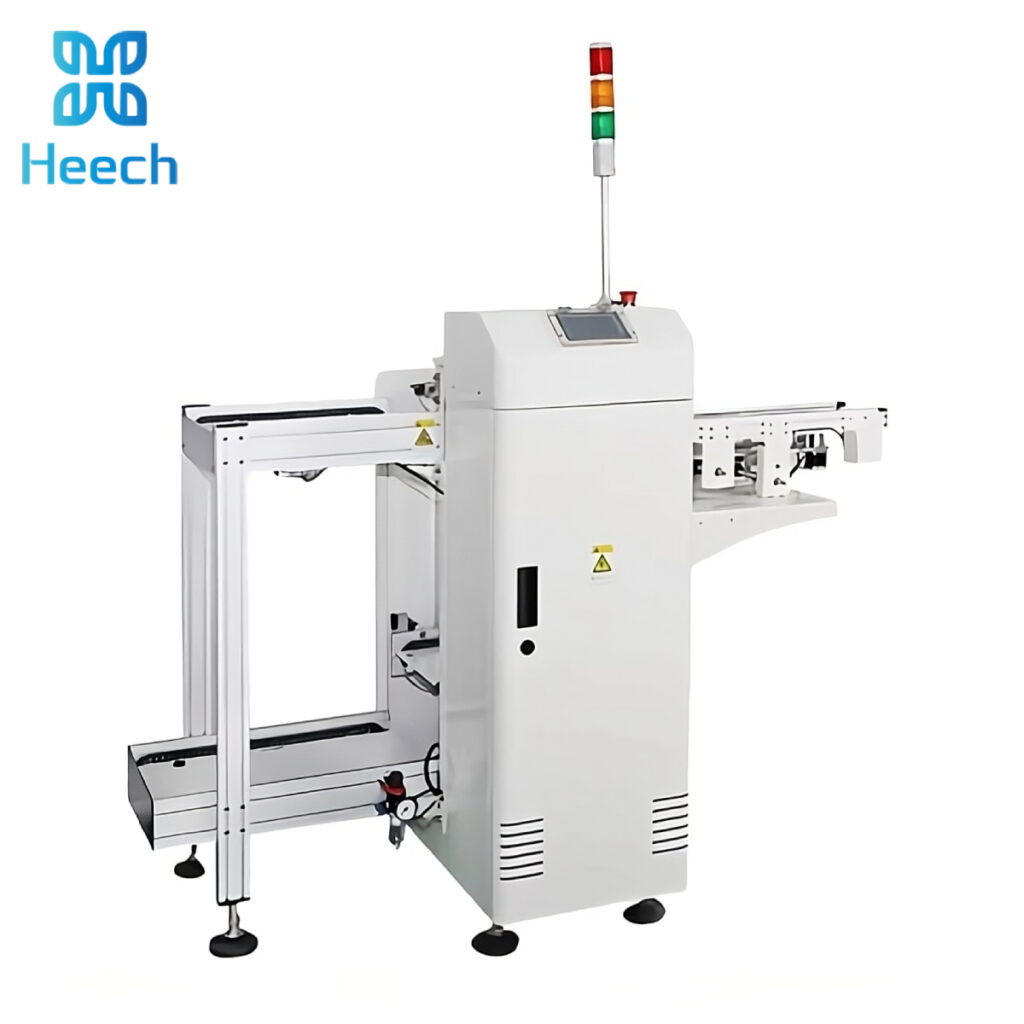

Full-automatic SMT PCB Unloader HC-UL250
■ Hands-free PCB handling
■ Seamless SMT line connection
■ Stable automatic transfer
The Heech Automatic PCB Unloader is used at the end of SMT production lines to automatically collect finished or inspected PCBs into magazines. With stable lifting control, smooth collection, and reliable ESD protection, it ensures efficient board handling and reduces manual workload.
Ideal for Automated SMT/THT Processes: collecting PCBs after reflow soldering, inspection, or functional testing in automated production lines.
SPECIFICATIONS
| Model | HC-UL250 | HC-UL330 | HC-UL390 |
| Power Supply | AC220V 50/60HZ | ||
| Air Pressure | 0.4~0.6MPA | ||
| Lifting Step of Magazine | 10, 20, 30, 40, 50MM | ||
| PCB Thickness | 0.5~3MM | ||
| PCB Size | 50×50 – 330×250MM | 50×50 – 460×330MM | 50×50 – 530×390MM |
| Magazine Size | 355×320×565MM | 460×400×565MM | 535×460×565MM |
| Transmission Height | 900 ± 20MM | ||
| PCB Transmission Direction | L → R (R → L Optional) | ||
| Control Mode | HMI + PLC | ||
| Communication Interface | SMEMA Signal | ||
| Push-rod Device | Cylinder Push Plate | ||
| Board Feeding Time | About 5S / PCS | ||
| Frame Change Time | About 25 Seconds | ||
| Machine Size | 1600×790×1300MM | 1800×870×1300MM | 2040×930×1300MM |
| Machine Weight | 200KGS | 230KGS | 240KGS |
