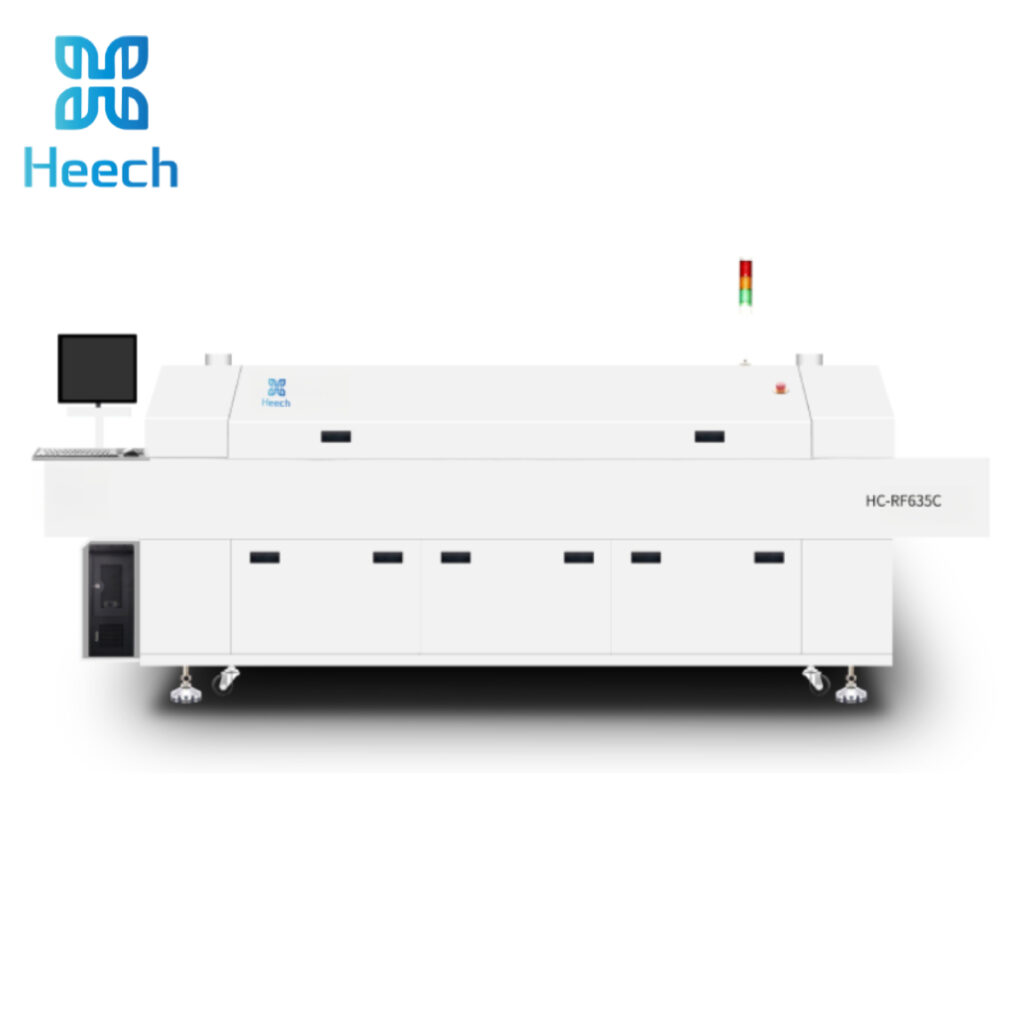

Lead Free Hot Air Reflow Oven HC-RF635C
■ 6 Zones Design (6 upper 6 down)
■ PID Close Loop Control + SSR Driving
■ Nitrogen Option Available
Ideal for Small to Medium-Volume Production: Suitable for EMS factories, contract manufacturers, and R&D labs that require high-quality soldering without the cost and footprint of full industrial-scale ovens.
Hybrid Heating Technology: Upper hot air + lower IR heating, with independent temperature and airflow adjustment, optimized for high precision lead-free soldering
SPECIFICATIONS
| Model | HC-RF635 | HC-RF635C |
| Machine Dimension | 3500 × 850 × 1550MM | |
| Machine Weight | 800KGS | |
| Heating Zones | Top 6 / Bottom 6 | |
| Heating Zones Length | 2400MM | |
| Exhaust Volume | 20–25m³/min × 2 | |
| Exhaust Pipe | 2 × φ200mm | |
| Cooling Method | Forced-Air | |
| Heating Method | Top: Hot Air / Bottom: Infrared | |
| Power Supply | 5-Wire 3-Phase 380V 50/60Hz (Optional: 3-Phase 220V 50/60Hz) | |
| Total Power | 24KW | |
| Starting Power | 15KW | |
| Normal Operating Power | 6KW | |
| Heating Up Time | About 20 minutes | |
| Temp. Setting Range | Room Temp. ~ 300℃ | |
| Temperature Control Method | PID + SSR + Touch Screen | PID + SSR + Siemens PLC + PC |
| Temperature Control Precision | ±1.0℃ | |
| Temperature Deviation on PCB | ±1.50℃ (By MR Board Test Standard) | |
| Abnormal Alarm | Abnormal Temperature (Extra-high / Extra-low Temp.) | |
| Mesh Width | 400MM | 400MM |
| Max Rail Width | / | 300MM |
| Components Clearance | 50MM | Top / Bottom Clearance of PCB is 25MM |
| Conveyor Direction | Left → Right (Optional: Right → Left) | |
| Transmission Method | Mesh | Chain + Mesh |
| Conveyor Height | 880 ± 20MM | 900 ± 20MM |
| Conveyor Speed Range | 100 ~ 2000MM/Min | |
