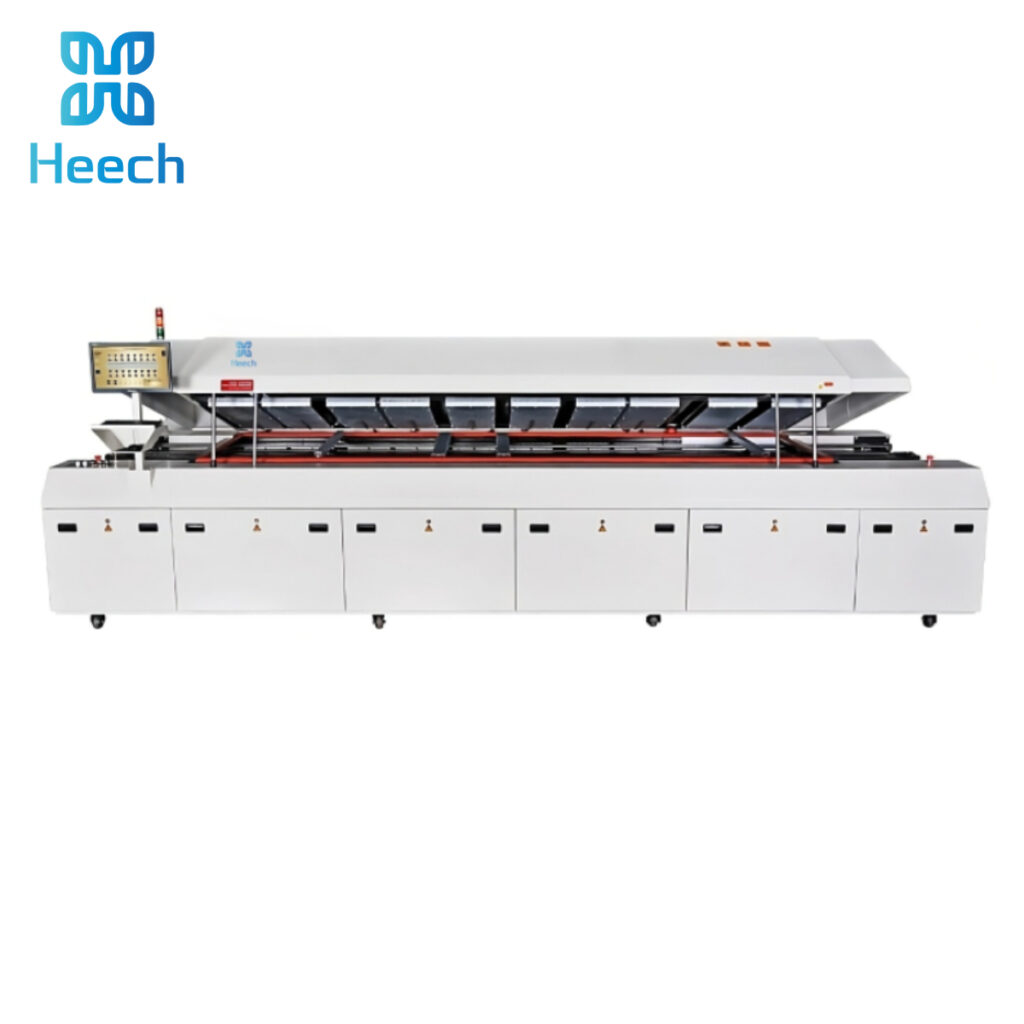

Lead-free Hot Air Reflow Oven HC-RF800A
■ 8 Zones Design (8 upper 8 down)
■ PID Close Loop Control + SSR Driving
■ Nitrogen Option Available
8-Zone Temperature Control (8-Up / 8-Down)：It’s provide precise reflow profiling for various PCB types, component sizes, and solder pastes. Ensures uniform heating on both PCB surfaces and consistent soldering quality across the board.
Ideal for Medium-to-Large Production: Designed for EMS factories, contract manufacturers and complex PCB assemblies.
SPECIFICATIONS
| Model | HC-RF800A |
| Machine Dimension | 5240*1350*1550MM |
| Machine Weight | 2050KGS |
| Heating Zones | Top 8 / Bottom 8 |
| Heating Zones Length | 3121MM |
| Exhaust Volume | 20-25m³/min*2 |
| Exhaust Pipe | 2*φ200mm |
| Colling Zones | Upper 2 Lower 2 |
| Heating Chamber Structure | Modular Type |
| Heating Method | Full Hot Air from Top and Bottom |
| Power Supply | 5-Wire 3-Phase 380V 50/60Hz (Optional: 3-Phase 220V 50/60Hz) |
| Total Power | 55KW |
| Starting Power | 25KW |
| Normal Operating Power | 7KW |
| Heating Up Time | About 25 minutes |
| Temp. Setting Range | Room Temp. ~300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving, monitored by Siemens PLC + PC |
| Temperature Control Precision | ±1.0℃ |
| Temperature Deviation on PCB | ±1.0℃ (By MR Board Test Standard) |
| Abnormal Alarm | Abnormal Temperature (Extra-high/Extra-low Temp.) |
| Mesh Width | 500MM |
| Max Rail Width | 400MM |
| Components Clearance | Top / Bottom Clearance of PCB is 25MM |
| Conveyor Direction | Left → Right (Optional : Right → Left) |
| Transmission Method | Chain + Mesh |
| Conveyor Height | 900±20MM |
| Conveyor Speed Range | 300~2000MM/Min |
