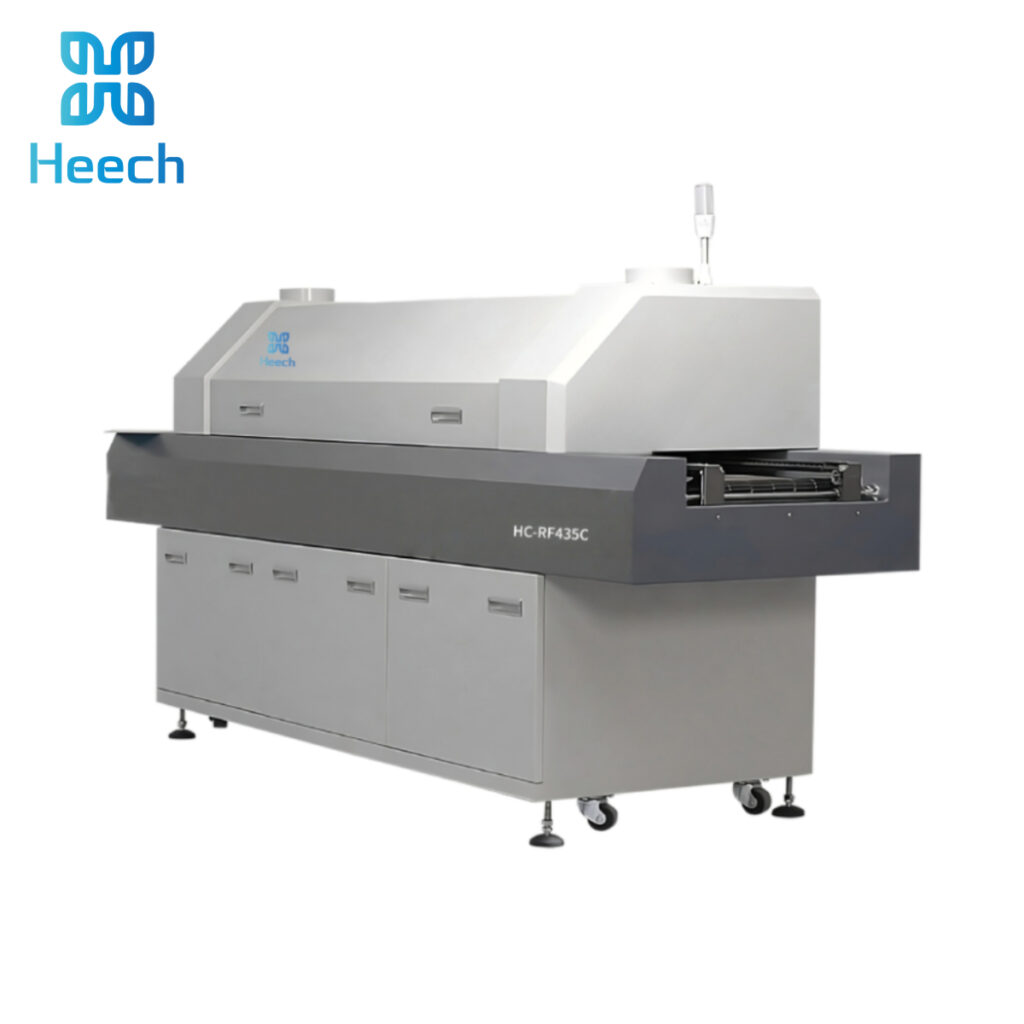

Lead Free Reflow Oven HC-RF435C

■ 4 Zones Design (4 upper 4 down)

■ PID Close Loop Control + SSR Driving

■ Nitrogen Option Available

This reflow oven HC-RF435C designed for precise and uniform soldering in small SMT production lines. Its conveyor system ensures smooth PCB handling, minimal warpage, and consistent soldering quality.

Perfect for EMS factories, contract manufacturers, and R&D labs requiring high soldering quality without industrial-scale oven costs.

SPECIFICATIONS

Model	HC-RF435	HC-RF435C
Machine Dimension	2500 × 850 × 1450MM
Machine Weight	600KGS
Heating Zones	Top 4 / Bottom 4
Heating Zones Length	1600MM
Exhaust Volume	20–25m³/min × 2
Exhaust Pipe	2 × φ200mm
Cooling Method	Forced-Air
Heating Method	Top: Hot Air / Bottom: Infrared
Power Supply	5-Wire 3-Phase 380V 50/60Hz (Optional: 3-Phase 220V 50/60Hz)
Total Power	18KW
Starting Power	12KW
Normal Operating Power	5KW
Heating Up Time	About 20 minutes
Temp. Setting Range	Room Temp. ~ 300℃
Temperature Control Method	PID + SSR + Touch Screen	PID + SSR + Siemens PLC + PC
Temperature Control Precision	±1.0℃
Temperature Deviation on PCB	±1.50℃ (By MR Board Test Standard)
Abnormal Alarm	Abnormal Temperature (Extra-high / Extra-low Temp.)
Mesh Width	400MM	400MM
Max Rail Width	0	300MM
Components Clearance	50MM	Top / Bottom Clearance: 25MM
Conveyor Direction	Left → Right (Optional: Right → Left)
Transmission Method	Mesh	Chain + Mesh
Conveyor Height	880 ± 20MM	900 ± 20MM
Conveyor Speed Range	100 ~ 2000MM/Min
