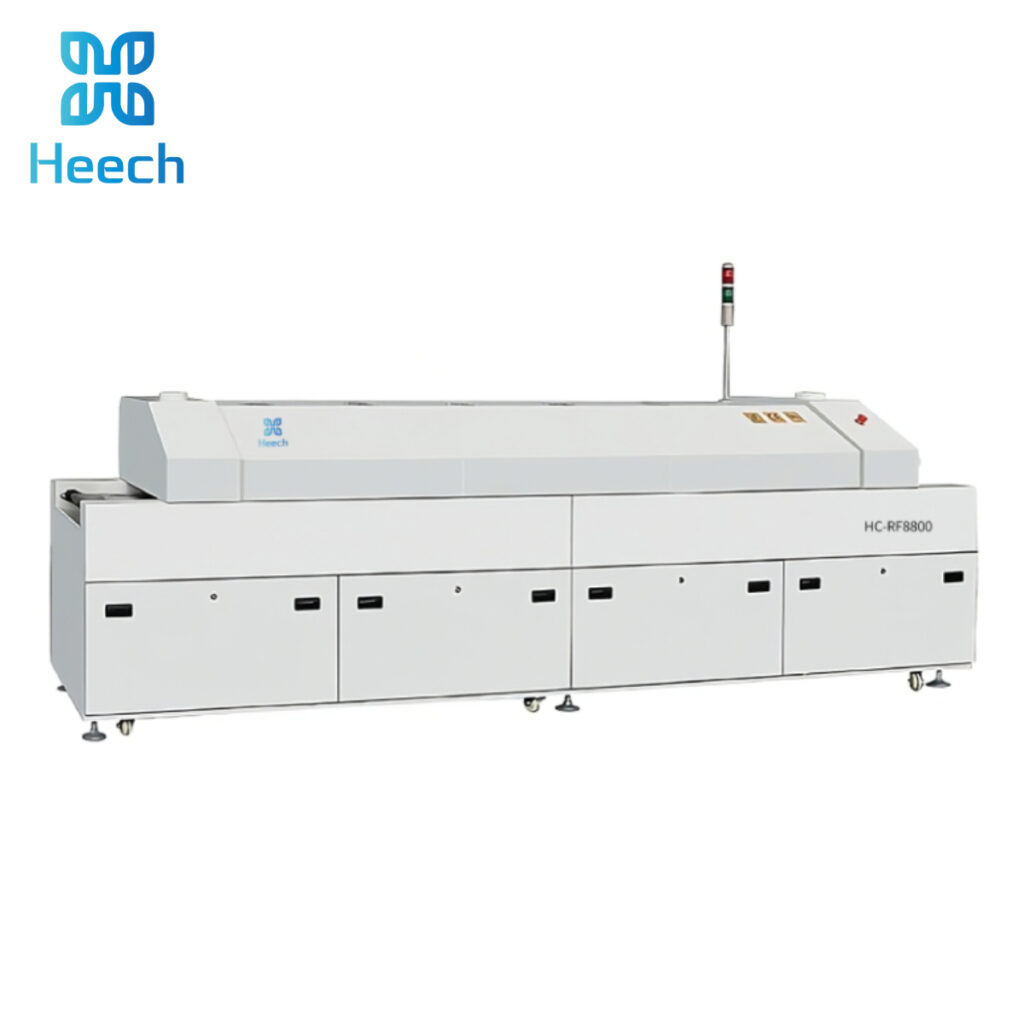

Lead Free Reflow Soldering Oven HC-RF8800
■ 8 Zones Design (8 upper 8 down)
■ PID Close Loop Control + SSR Driving
■ Nitrogen Option Available
Ideal for Small-Volume Production: Suitable for EMS factories, contract manufacturers, and R&D labs that require high-quality soldering without the cost and footprint of full industrial-scale ovens.
Hybrid Heating Technology: Upper hot air + lower IR heating, with independent temperature and airflow adjustment, optimized for high precision lead-free soldering
SPECIFICATIONS
| Model | HC-RF8800 |
| Machine Dimension | 4200*800*1250MM |
| Machine Weight | 800KGS |
| Heating Zones | Top 8 / Bottom 8 |
| Heating Zones Length | 2400MM |
| Exhaust Volume | 20-25m³/min*2 |
| Exhaust Pipe | 2*φ200mm |
| Cooling Method | Forced-Air |
| Heating Method | Top Zones: Hot Air, Bottom Zones: Infrared |
| Power Supply | 5-Wire 3-Phase 380V 50/60Hz (Optional: 3-Phase 220V 50/60Hz) |
| Total Power | 36 KW |
| Starting Power | 32 KW |
| Normal Operating Power | 4 KW |
| Heating Up Time | About 25 minutes |
| Temp. Setting Range | Room Temp. ~300℃ |
| Temperature Control Method | PID Close Loop Control + SSR Driving + Touch Screen |
| Temperature Control Precision | ±1.0℃ |
| Temperature Deviation on PCB | ±1.0℃ (By MR Board Test Standard) |
| Abnormal Alarm | Abnormal Temperature (Extra-high/Extra-low Temp.) |
| Mesh Width | 400MM |
| Components Clearance | 50MM |
| Conveyor Direction | Left → Right (Optional: Right → Left) |
| Transmission Method | Mesh |
| Conveyor Height | 880±20MM |
| Conveyor Speed Range | 100~2000MM/Min |
