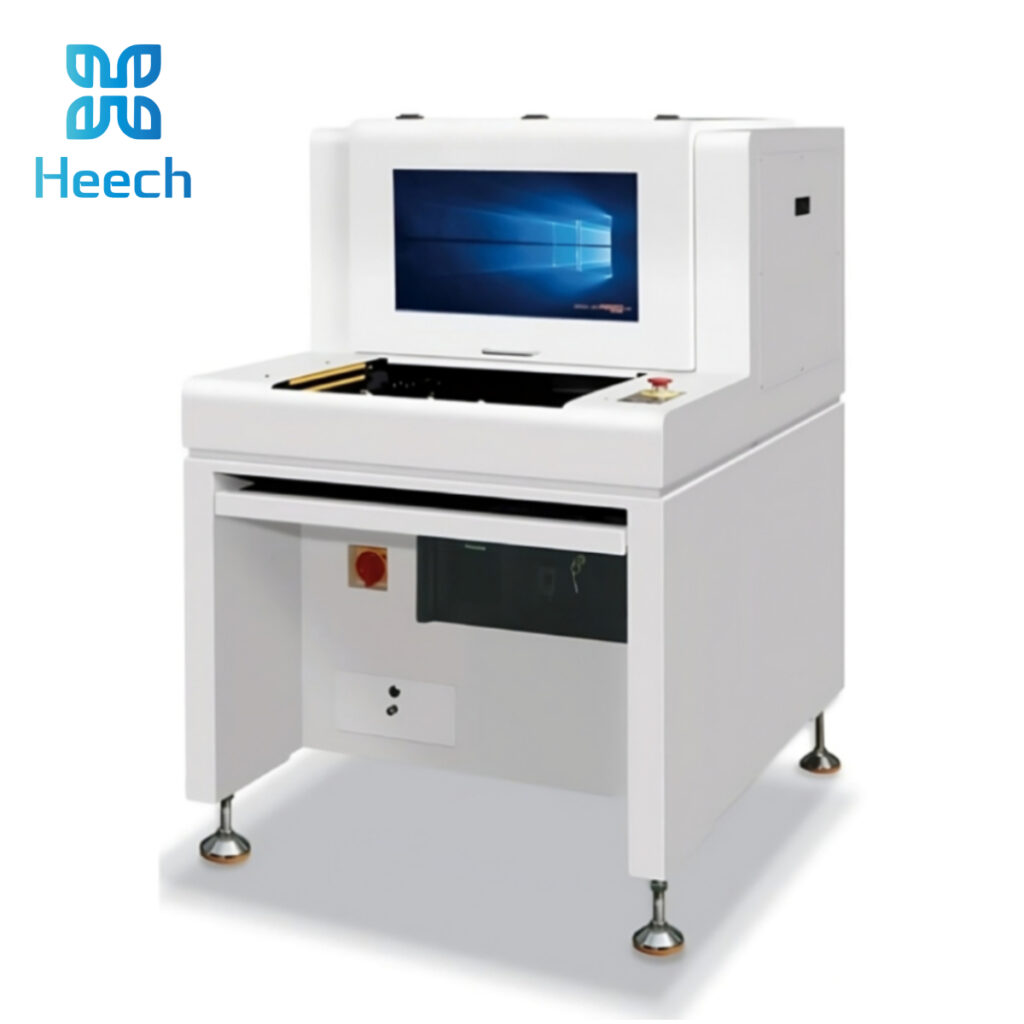

Off-line 2D AOI Machine HC-A5060
■ 2D Of-line AOI
■ Max PCB Size 500*600mm
■ PCB Thickness 0.3~5mm
The Offline AOI Machine is designed for flexible quality inspection in small-batch, prototyping, and post-process verification scenarios. Featuring manual loading, high-resolution imaging, and powerful detection algorithms, it provides an economical and versatile inspection solution without requiring a full SMT line setup.
Equipped with a high-megapixel camera and precision lens, delivering superior inspection accuracy for fine-pitch components and dense circuits.
SPECIFICATIONS
| Model | HC-A4333 | HC-A5060 | |
| Software | Operating System | Win 7 | |
| Software Algorithm | The system integrates multiple algorithms including TOC, Histogram, Match, Short, Other, and PIN. Parameters are automatically configured based on the characteristics of each inspection point. | ||
| Programming Mode | Manual programming, Auto-framing, CAD file import, and automatic component library matching. | ||
| Hardware | Machine Size | 870*1060*1310MM | 1000*1425*1310MM |
| 3 Megapixel Camera | Standard： 20UM/Pixel FOV：40MMx30MM | ||
| 5 Megapixel Camera | Standard： 20UM/Pixel FOV：48MMx40MM | ||
| Light Source | High brightness RRGB coaxial ring tower LED light source (color light) | ||
| Conveyor System | Automatic opening and closing of the two-sided fixture, automatic compensation PCB bending deformation. | ||
| Conveyor Ground Clearance | 850 to 920 MM | ||
| Conveyor Flow Direction | PCB moves in Y direction | ||
| X/Y Stage Drive | Screw rod and AC servo motor drive, PCB fixed, camera moving in X direction | ||
| Power Supply | AC230V 50/60HZ <0.5KVA | ||
| Function | Inspection Content | Solder paste printing: bridging, deflection, No solder paste, less / more tin, foreign matters Surface mounting: bridging, wrong parts, missing parts, polarity, deviation, stele erection, reversal, damage, IC bending feet, foreign matters After reflow welding: wrong parts, missing parts, polarity, deviation, stele erection, reversal, damage, IC bending feet, foreign matters, No solder paste, less / more tin, bridging, false welding, solder ball |
|
| PCB/FPC Size | 50*50mm~430*330mm | 50*50mm~500*600mm | |
| PCB/FPC Thickness | 0.3~5MM | ||
| Clamping Edge Clearance | TOP: 3.5MM Bottom: 3.5MM | ||
| PCBA/FPCA Weight | 3 KGS | ||
| PCB/FPC Warpage | < 5MM or 2% of PCB diagonal length | ||
| PCB/FPC Vertical Clearance | PCB top side: 30MM PCB bottom side: 60MM | ||
| Minimum Component | 10um; 01005chip & 0.3 pitch IC | ||
| Barcode Function | Automatic barcode recognition (1D or 2D code) | ||
| Special Features | It supports automatic calling program, multi board multi program detection function, positive and negative program detection function; it can check 0-359 rotating parts (unit: 1 °). | ||
| Central Management System | Adopt central server to manage several AOI data centrally | ||
| SPC Statistics | SPC statistics for process optimization | ||
