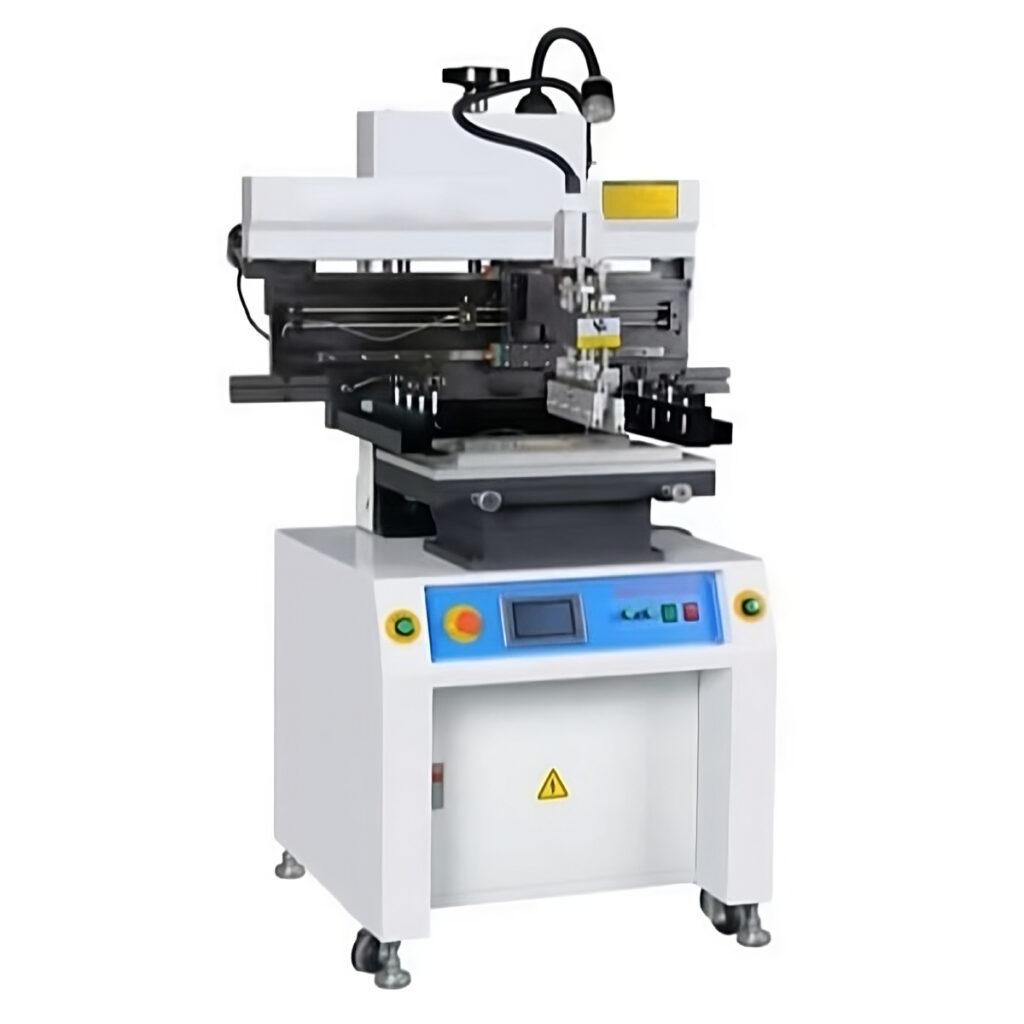

Semi-automatic Solder Paste Printer HC-PR650
■ Semi Auto Printer
■ Max PCB size: 300* 630mm
■ PCB Thickness: 0.2~2.2mm
The Semi-Automatic Solder Paste Printer offers high precision, improved efficiency, and stable repeatability for small to medium SMT production lines. Automated squeegee movement ensures uniform pressure, consistent paste distribution, and reduced operator variability.
Perfect for EMS, OEM/ODM factories, and fast-growing SMT workshops looking for a balance of speed, cost, and performance.
SPECIFICATIONS
| Model | HC-PR450 | HC-PR650 | HC-PR1250 |
| Power Supply | 220V, 50/60HZ, 100W | ||
| Printing Table Size | 320 × 450 mm | 320 × 650 mm | 320 × 1250 mm |
| PCB Thickness | 0.2 – 2.2 mm | ||
| Max. PCB Size | 320 × 430 mm | 300 × 630 mm | 300 × 1230 mm |
| Air Pressure | 4–6 kgf/cm² | ||
| Stencil Frame Size |
370 × 470 mm 420 × 520 mm 550 × 650 mm |
370 × 470 mm 420 × 520 mm 550 × 650 mm 550 × 900 mm |
370 × 470 mm 420 × 520 mm 550 × 650 mm 550 × 1550 mm |
| Table Adjustment | Front / Back ±10 mm, Right / Left ±10 mm | ||
| Min. Space | 0.35 mm | ||
| Repeating Accuracy | ±0.05 mm | ||
| Printing Accuracy | ±0.02 mm | ||
| Positioning System | PCB outer edge or pin positioning | ||
| Machine Size | 850 × 700 × 1650 mm | 1050 × 700 × 1650 mm | 1800 × 750 × 1650 mm |
| Machine Weight | 250 kg | 350 kg | 450 kg |
